Computing & Information Services

Telephone Web Guide

There are a variety of telephone tasks you can perform over the web including but not limited to checking your voicemail messages, setting up speed dials and changing your pin. We have documented the most common operations below.

Note: Currently, these web interfaces are only available from on campus. Firefox and Safari work best; Chrome does not work properly.

Checking your voicemail messages

  • Go to https://penta.reed.edu/ciscopca
  • Accept or add the security certificate when prompted (Safari users will need to "Continue"; Firefox users will need to "Add an Exception")
  • Login with your Kerberos username and password
  • Click the "Messaging Inbox" link
  • If prompted to accept certificates or allow access, click "Trust" or "Allow"
  • To listen to a message, click the name listed under the "From" column

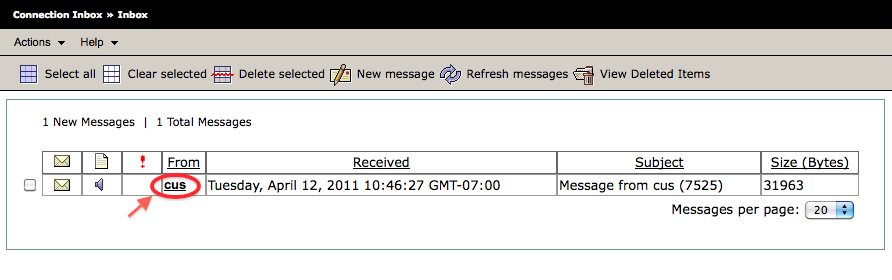

    Voicemail List
  • A new window will open. Click the Play button to listen to the message
  • Afterwards, you have the option of deleting the message by clicking the Delete icon at the top of the window

Setting up speed dials

The number of speed dial settings depends on the model and configuration of your phone.
  • Go to https://dode.reed.edu/ccmuser
  • Accept or add the security certificate when prompted (Safari users will need to "Continue"; Firefox users will need to "Add an Exception")
  • Login with your Kerberos username and password
  • If prompted to accept certificates or allow access, click "Trust" or "Allow"
  • Click the "User Options" drop-down box on the top left and choose "Device"
  • Click the "Speed Dials" tab
  • Under "Speed Dial Settings", enter the number and a label (the name to be displayed on your phone). For off-campus numbers, enter #, 1 (if necessary), followed by the area code and 7-digit number (eg, #5035555555 or #13105555555).
    Speed Dial
  • When done, click the "Save" button at the bottom
  • A short while later, the speed dials will be available from your phone

Changing your pin

This pin is used to access your voicemail directly from your phone and when calling in from off campus.
  • Go to https://penta.reed.edu/ciscopca/
  • Accept or add the security certificate when prompted (Safari users will need to "Continue"; Firefox users will need to "Add an Exception")
  • Login with your Kerberos username and password
  • If prompted to accept certificates or allow access, click "Trust" or "Allow"
  • Click the "Cisco Unity Connection Assistant" link
  • From the "Passwords" drop-down menu near the top, choose "Change Pin"
  • Enter your current pin in the "Current Password" box
  • Enter your new pin and confirm it
  • Click "Save" when done

Setting up email notifications for voicemail

You can choose to receive an email notification when voicemail is left for you.

  • Go to https://penta.reed.edu/ciscopca/
  • Accept or add the security certificate when prompted (Safari users will need to "Continue"; Firefox users will need to "Add an Exception")
  • Login with your Kerberos username and password
  • Click the "Messaging Assistant" link
  • From the "Notification Devices" drop-down menu near the top, choose "View Notification Devices"
  • Check the box that says "Notification Enabled"
  • Click the "Email" link listed under the Device column
  • In the "To" field, enter the email address that will receive the notification (eg, username@reed.edu)
  • and "From" field, enter your Reed phone number (eg, 5035555555)
  • Enter something appropriate for the "Message Header" such as "Voicemail Waiting" (this will appear in the first line of the notification email)
  • Check the boxes if you want the email to:
    • Include Message Counts in Message Text (cumulative message count)
    • Include Message Information in Message Text (name/phone number of caller and timestamp)
    • Include a Link to Cisco PCA in Message Text (link to listen to voicemail - currently, this link does not work)
  • In the "Notify Me Of" section, select "All Voice Messages"
  • Click the "Save" button near the top left.

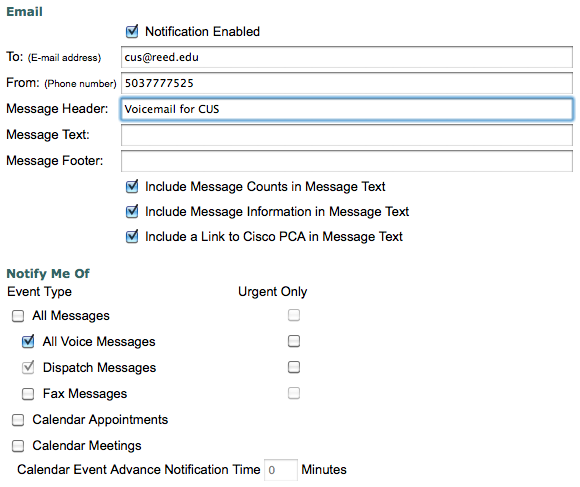

  • Email notification settings

When someone leaves you a message, you will receive an email with the subject: "Message notification: Voice message from…"

Follow our instructions for listening to your voicemail over the web.

Have questions? Encountered a problem? Send an email to telecomrequest@reed.edu, or call x7555.
